Instructions for the Integrated Solar Street Lights

1. The integrated solar street lights cannot work without sunlight, and the suitable types of products should be chosen according to the illumination intensity and the annual quantity of radiation of the installation sites. The service time of the solar street light will shorten if it cannot absorb enough solar energy or put in the condition of continuous rainy days, so it is suggested that the solar street light with the function of power compensation should be chosen, which can get power supply not only from the solar energy, but from the electrical power.

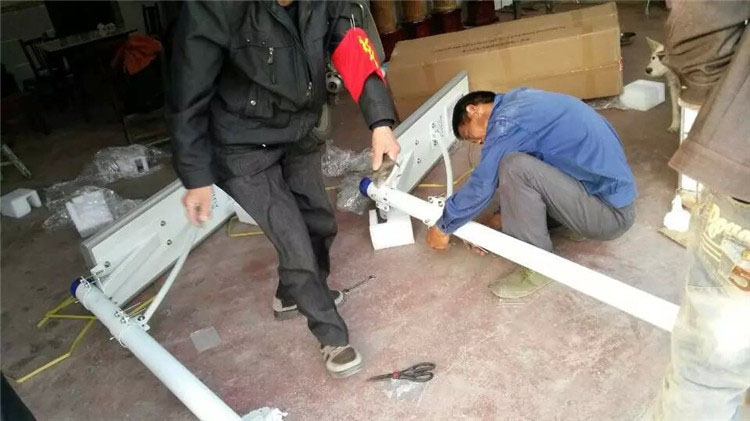

Integrated solar street light installation

2. The long service time lithium iron phosphate battery is applied as the energy storage device, and the charge temperature of the solar street light in the daytime is 0 to 60°C, if the charge temperature is below 0°C, the charge efficiency will be decreased greatly. the discharge temperature of it is -30 to 60°C, if the temperature is not in this range, the performance of the battery will be ruined, which may decrease the discharge time of the battery.

3. The integrated solar street light can be stored for 12 months if fully charged. If the street light should be transported for a long time, it should be checked to charge and record, or the battery inside the street light will be destroyed.

4. The cleanness of the solar panel of the integrated solar street light will influence the efficiency of the solar panel, so the surface of the solar panel should be cleaned regularly.

Directions for Installation
1. The lamppost of the integrated solar street light should be put in the place with good lighting, and the lamppost can be 6 to 7 meters with diameter of 60 to 110mm.
2. The electric cable should be built first before installation, and the cable should be put inside the lamppost through the hole on the side of the lamppost.
3. Press the button of the street light, if the LED flicks in one time, which means that the solar street light is ON state. After 10 seconds the light is in the condition of ON.
4. Put the lamp holder on the lamppost, and use the special tools to firm the anti-theft screw to ensure that the integrated solar street light is stable enough.
