Solar studs are now widely used for controlling traffic flow with a wide number of applications. In practice, such systems operate well above the road surface with a number of well known and widely accepted colors, with lights in particular orientations to make the message to a driver clear and univocal, thereby improving the traffic flow of the road and enhancing safety aspects. The new designed and patent solar stud could stand the pressure of 30 Tons so that cars can drive on the solar led marker lights directly.

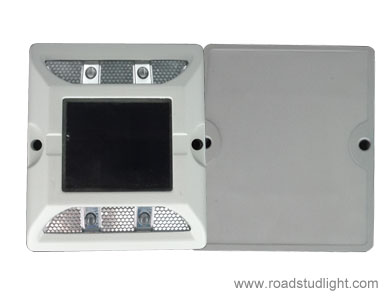

4pcs Led solar stud 6pcs Led solar stud

Features of solar stud:

- High brightness America brand led light with 100000 hours of working time.
- USA brand solar panel. 22% high conversion rate. Fast charge rate.
- Japan brand casting Al material. Solar stud bears more pressure.
- Most quality Epoxy resin glue to fix the solar stud, making sure of solar power charge.
- Philips PC board, safe and stable. Long time warranty for road stud reflectors.
- High temperature resistance battery. Working from -40°C to +80°C. Super capacitor solar stud is available.
- Top quality manufacture, weld directly to the PCB, no damage to led chip.
- Solar led marker lights are tested in water proof, charge rate and hardness before selling.
- Designed by integrated circuit and thermostability rechargeable batteries from solar road studs manufacturers. Ensure the long servicing life and performance of the product.



Name: Solar stud
Model NK-RS-A6-1
Material: Aluminum+PC
Power supply: Brand High Efficient Solar Panel
2.5V/150MA for NI-MH; 5V/60MA for lithum battery;
3V/120MAH for super capacitor
Battery: NI-MH 1.2V/ 600mah(high temperature resistance);
Lithum battery 3.2V/500MA
Super capacitor2.3V/120F (made in Korea)
Lens: PMMA(ASTM D4280 & EN 1463-1 standard)
LED: Ultra bright diameter 5mm(4pcs or 6pcs)
LED Color: Red,Yellow,Green,Blue,White
Working model: Blinking or constant(charged at daytime, working automatically at night)
Working Hours: (1).Blinking:140hours for NI-MH battery; 130hours for lithum battery; 30hours for super capacitor after fully charged
(2).Constant:40hours for NI-MH battery; 35hours for lithum battery; 15hours for super capacitor after fully charged
Visual distance: >800m
Water proof: IP68
Resistance: 30T(can be installed in the middle of road)
Life span: 2years for NI-MH battery;
5years for Lithum battery;
10years for 120F super capacitor
Size: 125*107*25+50mm
Packing: 1pc/box;45pcs/ctn
Carton size: 66.5*44*28mm
Weight: 27kgs/ctn
Certificate: CE & ROHS


Red Solar Stud Yellow Solar StudBlue Solar Stud colored Solar Stud

Applications of solar stud

- Indoor & Outdoor Roads, Driveways.
- Convention Spaces or Factories.
- Joint intersections, on and off ramps, center lines and dividers, entrance warnings, carpool lanes, bridges, cross and side walks
- Taxiways at airports, bike and pedestrian lanes, aboard ships and watercrafts.
